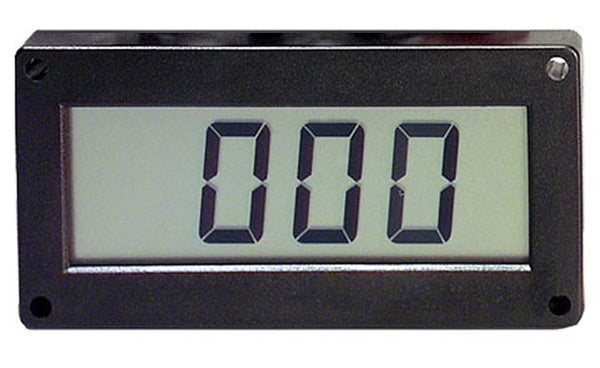

5F/5P Series

5F/5P Series 3 1/2 digit LCD panel meter

Low cost
Ultra-compact, flat design
Less than .25” deep
3 1/2 digits with high-contrast LCD

Display:	Digits:	3 ½ digits (±1999 counts)
	Type:	0.5" (13mm) 7 segment reflective LCD
	Digit Height:	.50"(12.7mm)
	Polarity Indication:	automatic, “-” displayed
	Annunciators	“LoBat” when power <7.2 VDC
	Decimal Points:	3 position, user selectable
	Overrange:	three lower order digits blank for inputs >1999
Inputs:	Ranges:	±200.0mV, ±2.000V, ±20.00V DC
	Configuration:	true differential input and reference
	Protection:	250V DC OR 150 V RMS continuous, 300V intermittent max
	Impedance:	>100 MΩ on ± 200mV ; (>1 MΩ on 2V & 20V range)
	Bias Current:	1 pA typical, 10 pA max
Performance:	Accuracy:	±(0.1% fs + 2 count) with +5 and ±5V power ±(0.1% rgd + 1 count) with 9V power
	Conversion Rate:	2.5 per second
	Normal Mode Rejection:	>30 dB @ 60 Hz
	Common Mode Range:	±1 VDC max
	Common Mode Rejection:	>86 dB
	Zero Adjustment:	automatic
	Warmup:	10 minutes typical
	Temperature Coeff.:	±100 ppm per °C typical
Environment:	Operating Range:	0 to 50 °C
	Storage Range:	-10 to 60 °C
	Relative Humidity:	0 to 95% non-condensing
Power Supply:	9V powered:	9V isolated, 7.2-14V at 150µA
	+5V and -5V DC:	± 5V ±5% at 150 µA
	+5V DC:	5V ±5% at 3 mA
Mounting:		panel hole mounting standard
		bezel mount optional
Dimensions:		2.37 x 1.50 x .32
Panel Cutout		1.89 x .66
Weight		0.9 oz (25g)
Connection:	5F	13 pins, 0.025" square - pin 3 missing
	5P	15 solder pads

5F/5P Series Ordering Information

Show Cross-Reference Table

Cross Referece Table
KNS Part	Brighton	Jewell	Modutec	C-Ton
5F0040		5900310040	BL177301	DK177
5F0050		5900310090	BL177101	DK174
5F0090		5900310090	BL177101	DK174
5F0140		5900310140	BL177302	DK178
5F0150		5900310190	BL177102	DK175
5F0190		5900310190	BL177102	DK175
5F0240		5900310240	BL177303	DK179
5F0250		5900310290	BL177103	DK176
5F0290		5900310290	BL177103	DK176
5P0040		5900320040	BL176301
5P0050		5900320090	BL176101	DK171
5P0090		5900320090	BL176101	DK171
5P0140		5900320140	BL176302
5P0150		5900320190	BL176102	DK172
5P0190		5900320190	BL176102	DK172
5P0240		5900320240	BL176303
5P0250		5900320290	BL176103	DK173
5P0290		5900320290	BL176103	DK173
B-1B
CVC				CVC
J1C13				J1C13
PW2-12				PW2-12
PW2-5				PW2-5

Image	Model	Description	Price
	5F0040	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +5VDC	$56.57	Order Here
	5F0050	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +/-5VDC	$56.57	Order Here
	5F0090	NO BACKLIGHT LCD, RANGE: 200mV, POWER: 9V	$56.57	Order Here
	5F0140	NO BACKLIGHT LCD, RANGE: 2V, POWER: +5VDC	$56.57	Order Here
	5F0150	NO BACKLIGHT LCD, RANGE: 2V, POWER: +/-5VDC	$56.57	Order Here
	5F0190	NO BACKLIGHT LCD, RANGE: 2V, POWER: 9V	$56.57	Order Here
	5F0240	NO BACKLIGHT LCD, RANGE: 20V, POWER: +5VDC	$56.57	Order Here
	5F0250	NO BACKLIGHT LCD, RANGE: 20V, POWER: +/-5VDC	$56.57	Order Here
	5F0290	NO BACKLIGHT LCD, RANGE: 20V, POWER: 9V	$56.57	Order Here
	5P0040	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +5VDC	$56.57	Order Here
	5P0050	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +/-5VDC	$56.57	Order Here
	5P0090	NO BACKLIGHT LCD, RANGE: 200mV, POWER: 9V	$56.57	Order Here
	5P0140	NO BACKLIGHT LCD, RANGE: 2V, POWER: +5VDC	$56.57	Order Here
	5P0150	NO BACKLIGHT LCD, RANGE: 2V, POWER: +/-5VDC	$56.57	Order Here
	5P0190	NO BACKLIGHT LCD, RANGE: 2V, POWER: 9V	$56.57	Order Here
	5P0240	NO BACKLIGHT LCD, RANGE: 20V, POWER: +5VDC	$56.57	Order Here
	5P0250	NO BACKLIGHT LCD, RANGE: 20V, POWER: +/-5VDC	$56.57	Order Here
	5P0290	NO BACKLIGHT LCD, RANGE: 20V, POWER: 9V	$56.57	Order Here
	B-1B	Bezel Mounting Kit	$5.50	Order Here
	CVC	Compact Current & Voltage Calibrator	$170.78	Order Here
	J1C13	13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #4	$4.95	Order Here
	PW2-12	DC Power Supply, 120 AC Input, 12 VDC @ 200mA Output	$42.90	Order Here
	PW2-5	DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output	$42.90	Order Here
