DMO-6xT Series

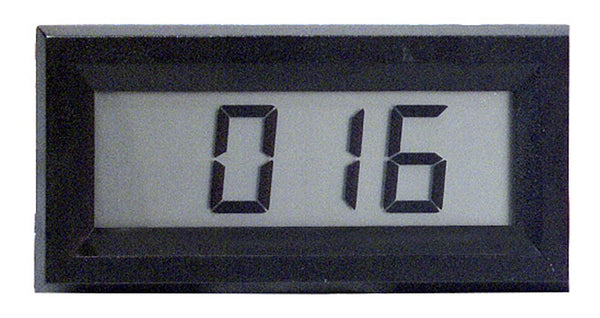

DMO-6xT Series - 3 1/2 LCD digit panel meter





  • Space-saving design only 0.67”(17mm) deep
  • Occupies less than 2.5 x 1.1 inches of front panel space
  • High-contrast LCD
  • 3 1/2 digits with 0.39” LCD
  • Snap-In bezel eliminates the need for mounting hardware
  • Low power requirement (3mA) is ideal for battery powered applications
  • User-selectable decimal points

 data sheet thumbnail Wiring Diagram Thumbnail



Display:  Digits: 3 ½ digits (±1999 counts)
  Type:  0.39” (10mm) high contrast reflective LCD
  Polarity: automatic, “-” displayed
  Decimal Points:  3 position, user selectable
  Overrange: three lower order digits blank for inputs >1999 & <-1999
Inputs:  Ranges: ±200.0mV, ±2.000V, ±20.00V DC
  Configuration: bipolar, differential
  Protection: ±350V DC, (±100 VDC on 200mV range)
  Impedance: >1 MΩ, (>10 MΩ on 200mV range)
Performance: Accuracy: ±(0.1% +1 counts) typical
±(0.2% + 2 counts) maximum
  Conversion Rate:  3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Common Mode Range: ±1 VDC
  Common Mode Rejection: >86 dB
  Zero Adjustment: automatic
  Warmup:  10 minutes typical
  Temperature Coeff.: ±100 ppm per °C typical
Environment: Operating Range:  0 to 50° C
  Storage Range: -10 to 70° C
Power Supply: Voltage:  +5 VDC (±5%)
  Current: 3mA
Mounting:   snap-in bezel mount
Connection:   10 pins, 0.025" square on 0.1" centers
