PW1.5


PW-1.5

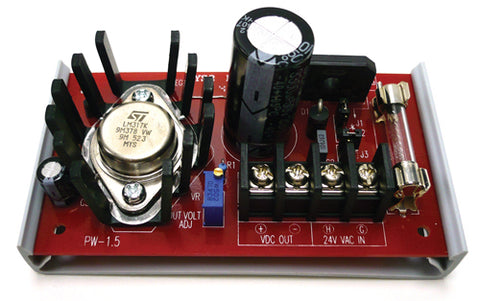

The Model PW 1.5 is a regulated 1.5A power supply that accepts 24 VDC/VAC. Field voltage adjustments may be made using only a screwdriver. The power supply is provided with a mounting track for easy installation.

  • Low cost
  • Regulated DC output
  • Snap-track mounted
  • Screw terminals with pressure plates




Voltage:  Input :  24 VAC, 50/60 Hz
  Output:  24 VDC (full wave rectified and regulated) adjustable
Output Current:    1.5 amps (with 75 VA transformer)
Temperature Stability:    1%
Over-current Protection:    3 amp fuse
Environment:  Operating Temperature:  0 to 55°C (32° to 130°F)
  Max. Humidity: 95% RH, noncondensing
Weight:    0.4 lb.
Mounting:    snap-track included
