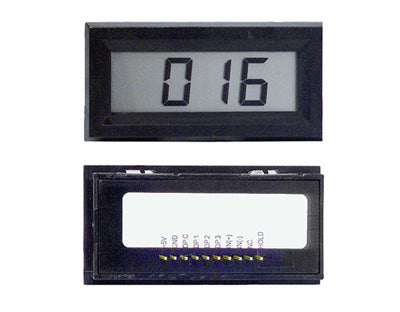

965 Series
| Display: | Digits: | 3 ½ digits (±1999 counts) |
| Type: | 0.39” (10mm) high contrast reflective LCD | |
| Polarity: | automatic, “-” displayed | |
| Decimal Points: | 3 position, user selectable | |
| Overrange: | three lower order digits blank for inputs >1999 & <-1999 | |
| Inputs: | Ranges: | ±200.0mV, ±2.000V, ±20.00V DC |
| Configuration: | bipolar, differential | |
| Protection: | ±350V DC, (±100 VDC on 200mV range) | |
| Impedance: | >1 MΩ, (>10 MΩ on 200mV range) | |
| Performance: | Accuracy: | ±(0.1% +1 counts) typical ±(0.2% + 2 counts) maximum |
| Conversion Rate: | 3 per second | |
| Normal Mode Rejection: | >30 dB @ 60 Hz | |
| Common Mode Range: | ±1 VDC | |
| Common Mode Rejection: | >86 dB | |
| Zero Adjustment: | automatic | |
| Warmup: | 10 minutes typical | |
| Temperature Coeff.: | ±100 ppm per °C typical | |
| Environment: | Operating Range: | 0 to 50 °C |
| Storage Range: | -10 to 70 °C | |
| Power Supply: | Voltage: | +5 VDC (±5%) |
| Current: | 3mA | |
| Mounting: | snap-in bezel mount | |
| Connection: | 10 pins, 0.025" square on 0.1" centers |
965 Series Ordering Information
Show Cross-Reference Table
| Image | Model | Description | Price | |
|
9650FO | 3 1/2 Digit LCD, 200mV Range, 5V Powered, Snap-In Bezel Mounting | $49.56 | |
|
9652FO | 3 1/2 Digit LCD, 2V Range, 5V Powered, Snap-In Bezel Mounting | $49.56 | |
|
9654FO | 3 1/2 Digit LCD, 20V Range, 5V Powered, Snap-In Bezel Mounting | $49.56 | |
|
CVC | Compact Current & Voltage Calibrator | $170.78 | |
|
J1C10 | 10 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 | $3.63 | |
|
PW2-5 | DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output | $42.90 |
