DLA-200LED SERIES

Click here for Ordering Information

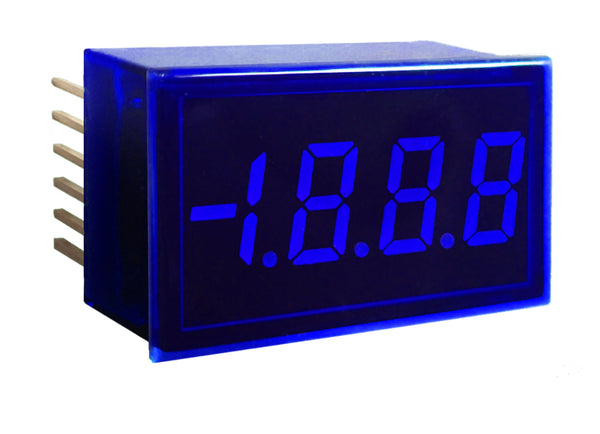

3½ Digit LED Display

3½ Digit LED Display





  • 0.37", 3½ digit high intensity LED display
  • Available in RED, BLUE or GREEN
  • User-selectable decimal points
  • Polycarbonate case
  • Optional bezel mount

 Data Sheet Wiring Diagram







Display:  Numeral Size: .37” (9.4 mm)
  Overrange:  three lower order digits blank for inputs >1999 & < -1999
  Polarity Indication: automatic (-) for negative
  Supply Voltage: +5 VDC @ 40 mA
Inputs Input Ranges: ±200 mV, ± 2 V, ±20 V
Input Impedance: 1000 MΩ (200 mV)
1 MΩ (other ranges)
Common Mode Range: ± 1 VDC
Performance Accuracy: ±1% F.S. ± 2 counts
Sampling Rate: 3 per second
Environment: Operating Temperature: 0 to 50 °C
Max Humidity: 95% (non-condensing)
Connection 12 pin
DLA-200LED SERIES Ordering Information
Show Cross-Reference Table
Image Model Description Price
CVC CVC Compact Current & Voltage Calibrator $186.66 Order Here
DLA-200B DLA-200B COLOR: BLUE LED, INPUT: 200mV $50.67 Order Here
DLA-200G DLA-200G COLOR: GREEN LED, INPUT: 200mV $47.60 Order Here
DLA-200R DLA-200R COLOR: RED LED, INPUT: 200mV $47.60 Order Here
DLA-201B DLA-201B COLOR: BLUE LED, INPUT: 2V $50.67 Order Here
DLA-201G DLA-201G COLOR: GREEN LED, INPUT: 2V $47.60 Order Here
DLA-201R DLA-201R COLOR: RED LED, INPUT: 2V $47.60 Order Here
DLA-202B DLA-202B COLOR: BLUE LED, INPUT: 20V $50.67 Order Here
DLA-202G DLA-202G COLOR: GREEN LED, INPUT: 20V $47.60 Order Here
DLA-202R DLA-202R COLOR: RED LED, INPUT: 20V $47.60 Order Here
PW2-5 PW2-5 DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output $43.78 Order Here
