DLA Series

Click here for Ordering Information

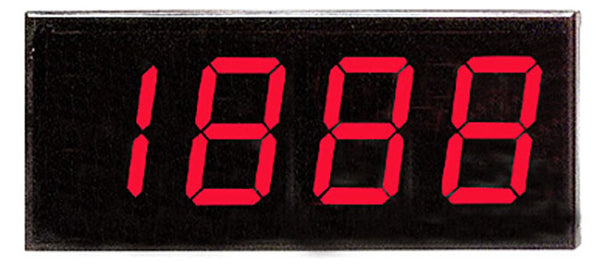

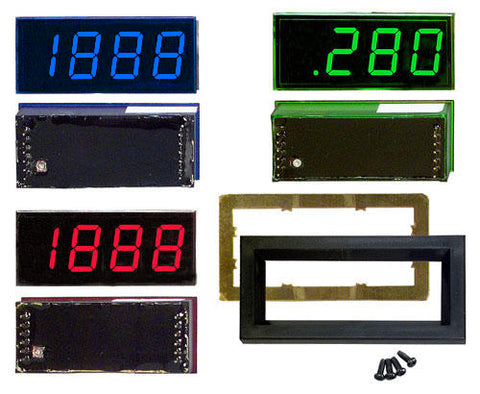

DLA Series 3 1/2 digit LED panel meter





  • 0.56", 3 1/2 digit high-intensity display

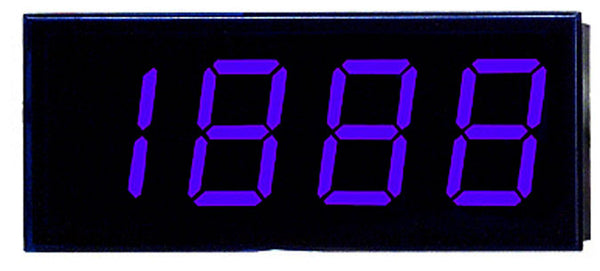

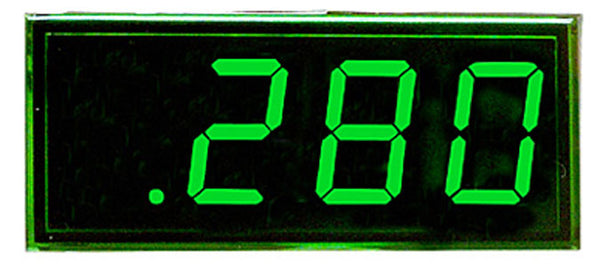

  • Available in Red, Blue or Green
  • User selectable decimal points
  • Polycarbonate case
  • Optional bezel-mount










    Display:  Digits: 3 ½ digits
      Type:  .56” (14.27 mm) LED
      Polarity Indication:  automatic, (-) for negative input
    Inputs:  Ranges:  ±200mV, ± 2V, ±20VDC
      Impedance:  1000MΩ (200mV)
    1MΩ (other ranges)
    Performance: Overrange: three lower order digits blank for inputs >1999 & < -1999
      Accuracy: ±1% F.S. ± 2 counts
      Common Mode Range:  ±1 VDC
      Sampling Rate:  3 per second
    Environment: Operating Range:  0 to 50 °C
    Max Humidity:    95% (non-condensing)
    Power Supply: Voltage: +5 Vdc @ 40mA
    Mounting:   optional bezel mount
    Connection:   12 pin




    DLA Series Ordering Information
    Show Cross-Reference Table
    Image Model Description Price
    CVC CVC Compact Current & Voltage Calibrator $170.78 Order Here
    DLA-300BL DLA-300BL BLUE LED, RANGE: 200mV, POWER: 5V $58.32 Order Here
    DLA-300GL DLA-300GL GREEN LED, RANGE: 200mV, POWER: 5V $58.32 Order Here
    DLA-300HRL DLA-300HRL HI INTENS. RED LED, RANGE: 200mV, POWER: 5V $58.32 Order Here
    DLA-301BL DLA-301BL BLUE LED, RANGE: 2V, POWER: 5V $58.32 Order Here
    DLA-301GL DLA-301GL GREEN LED, RANGE: 2V, POWER: 5V $58.32 Order Here
    DLA-301HRL DLA-301HRL HI INTENS. RED LED, RANGE: 2V, POWER: 5V $58.32 Order Here
    DLA-302BL DLA-302BL BLUE LED, RANGE: 20V, POWER: 5V $58.32 Order Here
    DLA-302GL DLA-302GL GREEN LED, RANGE: 20V, POWER: 5V $58.32 Order Here
    DLA-302HRL DLA-302HRL HI INTENS. RED LED, RANGE: 20V, POWER: 5V $58.32 Order Here
    DLA-400HRL DLA-400HRL HI INTENS. RED LED, RANGE: 200mV, W/HOLDFUNCTION, POWER: 5V $58.32 Order Here
    DLA-401HRL DLA-401HRL HI INTENS. RED LED, RANGE: 2V, W/HOLDFUNCTION, POWER: 5V $58.32 Order Here
    DLA-402HRL DLA-402HRL HI INTENS. RED LED, RANGE: 20V, W/HOLDFUNCTION, POWER: 5V $58.32 Order Here
    DLA-BEZ DLA-BEZ Bezel Assembly for DLA Series $3.63 Order Here
    PW2-5 PW2-5 DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output $42.90 Order Here
