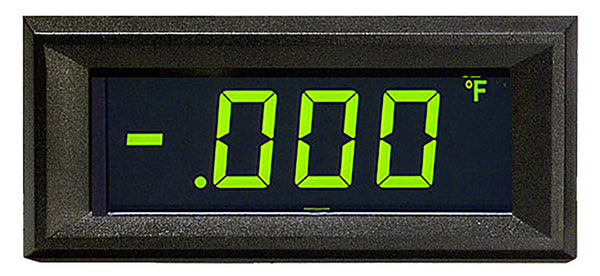

DMO-5xx Epic Series
Display: | Digits: | 3 ½ digits (±1999 counts) |
Type: | 0.45" (11.4 mm) 7 segment LCD | |
Backlighting: | Optional Red Negative (red numbers/black background) Optional Green Negative (green numbers/black background) Optional Amber Negative (amber numbers/black background) Optional Green Positive (black numbers/green background) |
|
Polarity: | automatic, “-” displayed | |
Annuciators: | °F, °C, PSI, %, user selectable | |
Decimal Points: | 3 position, user selectable | |
Overrange: | three lower order digits blank for inputs >1999 | |
Inputs: | Ranges: | ±200.0mV, ±2.000V, ±20.00VDC |
Configuration: | bipolar differential | |
Protection: | ±350V DC, (±100V DC on 200mV range) | |
Impedance: | 1000 MΩ on ± 200mV ; (1 MΩ on 2V & 20V range) | |
Bias Current: | 1 pA ( ± 200mV) , 100 pA (other ranges) | |
Performance: | Accuracy: | ± (0.1% fs + 2 count) |
Conversion Rate: | 3 per second | |
Normal Mode Rejection: | >30 dB @ 60 Hz | |
Common Mode Range: | ±1V DC max | |
Common Mode Rej.: | >86 dB | |
Zero Adjustment: | automatic | |
Warmup: | 10 minutes typical | |
Temperature Coeff.: | ± 100 ppm per °C typical | |
Environment: | Operating Range: | 0 to 50 °C |
Storage Range: | -10 to 70 °C | |
Power Supply: | 5V DC at 3.5 mA max | |
Optional Backlight: | 24V DC at 35 mA, 5 VDC at 130mA typical | |
Mounting: | snap-in bezel mount | |
Connection: | 13 pins, 0.025" square | |
*Negative backlighting is lighted numerals | ||
Positive backlighting is lighted background |
DMO-5xx Epic Series Ordering Information
Show Cross-Reference Table
Image | Model | Description | Price | |
DMO-541 | NO BACKLIGHT LCD, RANGE: 200mV, MOUNTING: SNAP IN | $62.50 | ||
DMO-542 | NO BACKLIGHT LCD, RANGE: 2V, MOUNTING: SNAP IN | $62.50 | ||
DMO-543 | NO BACKLIGHT LCD, RANGE: 20V, MOUNTING: SNAP IN | $62.50 | ||
DMO-551 | NEGATIVE AMBER LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-552 | NEGATIVE AMBER LCD, RANGE: 2V, MOUNTING: SNAP IN | $71.94 | ||
DMO-553 | NEGATIVE AMBER LCD, RANGE: 20V, MOUNTING: SNAP IN | $71.94 | ||
DMO-554 | NEGATIVE AMBER LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-561 | NEGATIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-562 | NEGATIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN | $71.94 | ||
DMO-563 | NEGATIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN | $71.94 | ||
DMO-564 | NEGATIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-571 | NEGATIVE RED LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-572 | NEGATIVE RED LCD, RANGE: 2V, MOUNTING: SNAP IN | $71.94 | ||
DMO-573 | NEGATIVE RED LCD, RANGE: 20V, MOUNTING: SNAP IN | $71.94 | ||
DMO-574 | NEGATIVE RED LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-581 | POSITIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
DMO-582 | POSITIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN | $71.94 | ||
DMO-583 | POSITIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN | $71.94 | ||
DMO-584 | POSITIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $71.94 | ||
J4C13 | 13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 | $4.95 | ||
PW2-24 | DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output | $42.90 | ||
PW2-5 | DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output | $42.90 |
