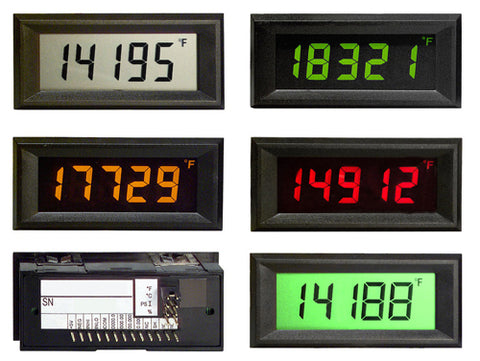

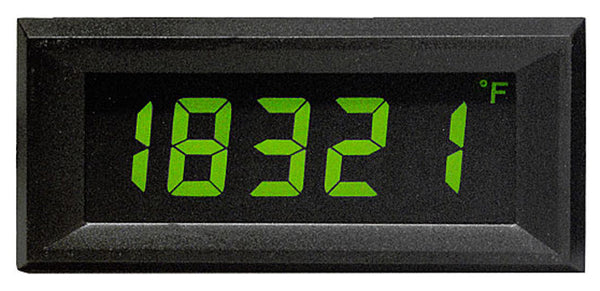

DMO-7xx Epic Series
Display: | Digits: | 4 ½ digits (±19999 counts) |
Type: | 0.45" (11.4 mm) 7 segment LCD | |
Backlighting: | Optional Red Negative (red numbers/black background) Optional Green Negative (green numbers/black background) Optional Amber Negative (amber numbers/background) Optional Green Positive (black numbers/green background) |
|
Polarity: | automatic, “-” displayed | |
Annunciators: | °F, °C, PSI, %, user selectable | |
Decimal Points: | 4 position, user selectable | |
Overrange: | four lower order digits blank for inputs >19999 | |
Inputs: | Ranges: | ±200.0mV, ±2.000V, ±20.00V DC |
Configuration: | bipolar differential | |
Protection: | ±350V DC, (±100V DC on 200mV range) | |
Impedance: | 1000 MΩ on ± 200mV ; (1 MΩ on 2V & 20V range) | |
Bias Current: | 1 pA ( ± 200mV) , 100 pA (other ranges) | |
Performance: | Accuracy: | ± (0.1% fs + 2 count) |
Conversion Rate: | 3 per second | |
Normal Mode Rejection: | >30 dB @ 60 Hz | |
Common Mode Range: | ±1 VDC max | |
Common Mode Rej.: | >86 dB | |
Zero Adjustment: | automatic | |
Warmup: | 10 minutes typical | |
Temperature Coeff.: | ±100 ppm per °C typical | |
Environment: | Operating Range: | 0 to 50 °C |
Storage Range: | -10 to 70 °C | |
Power Supply: | +5V DC: | +5V DC at 3.5 mA max |
Optional Backlight: | 24V DC at 35 mA, 5 VDC at 130 mA typical | |
Mounting: | snap-in bezel mount | |
Connection: | 13 pins, 0.025" square | |
DMO-7xx Epic Series Ordering Information
Show Cross-Reference Table
Image | Model | Description | Price | |
DMO-741 | NO BACKLIGHT LCD, RANGE: 200mV, MOUNTING: SNAP IN | $91.36 | ||
DMO-742 | NO BACKLIGHT LCD, RANGE: 2V, MOUNTING: SNAP IN | $91.36 | ||
DMO-743 | NO BACKLIGHT LCD, RANGE: 20V, MOUNTING: SNAP IN | $91.36 | ||
DMO-751 | NEGATIVE AMBER LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-752 | NEGATIVE AMBER LCD, RANGE: 2V, MOUNTING: SNAP IN | $106.12 | ||
DMO-753 | NEGATIVE AMBER LCD, RANGE: 20V, MOUNTING: SNAP IN | $106.12 | ||
DMO-754 | NEGATIVE AMBER LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-761 | NEGATIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-762 | NEGATIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN | $106.12 | ||
DMO-763 | NEGATIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN | $106.12 | ||
DMO-764 | NEGATIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-771 | NEGATIVE RED LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-772 | NEGATIVE RED LCD, RANGE: 2V, MOUNTING: SNAP IN | $106.12 | ||
DMO-773 | NEGATIVE RED LCD, RANGE: 20V, MOUNTING: SNAP IN | $106.12 | ||
DMO-774 | NEGATIVE RED LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-781 | POSITIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
DMO-782 | POSITIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN | $106.12 | ||
DMO-783 | POSITIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN | $106.12 | ||
DMO-784 | POSITIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN | $106.12 | ||
J4C13 | 13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 | $4.95 | ||
PW2-24 | DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output | $42.90 | ||
PW2-5 | DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output | $42.90 |
