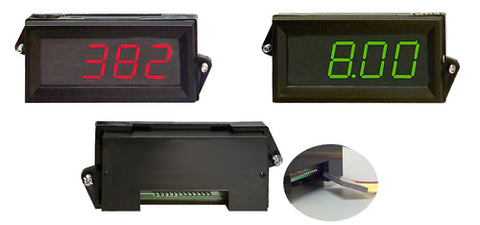

DMO-800/900 LED Series
| Display: | Digits: | 3 ½ digits (±1999 counts) |
| Type: | 0.8” (20.3 mm) LED | |
| Polarity: | automatic, “-” displayed | |
| Decimal Points: | 3 position, user selectable | |
| Overrange: | three lower order digits blank for inputs >1999 & <-1999 | |
| Inputs: | Ranges: | ±200.0mV, +/-2.000V, +/-20.00VDC |
| Configuration: | bipolar, differential | |
| Protection: | ±350V DC, (±100V DC on 200mV range) | |
| Impedance: | >1 MΩ, (>10 MΩ on 200mV range) | |
| Performance: | Accuracy: | ±(0.05% of full scale + 1 count) |
| Conversion Rate: | 3 per second | |
| Normal Mode Rejection: | >30 dB @ 60 Hz | |
| Common Mode Range: | ±1 VDC | |
| Common Mode Rej.: | >86 dB | |
| Zero Adjustment: | automatic | |
| Warmup: | 10 minutes typical | |
| Temperature Coeff.: | ±100 ppm per °C typical | |
| Environment: | Operating Range: | -10 to 50 °C |
| Storage Range: | -40 to 75 °C | |
| Power Supply: | Voltage input units: | +5V DC (± 5%) 180mA @ 5V |
| Mounting: | snap-in panel mount or clamp and gasket (included) | |
| Connection: | 13 pin male connection |
DMO-800/900 LED Series Ordering Information
Show Cross-Reference Table
| Image | Model | Description | Price | |
|
CVC | Compact Current & Voltage Calibrator | $170.78 | |
|
DMO-851 | RED LED, RANGE: 200mV, POWER: +5VDC | $89.97 | |
|
DMO-852 | RED LED, RANGE: 2V, POWER: +5VDC | $89.97 | |
|
DMO-853 | RED LED, RANGE: 20V, POWER: +5VDC | $89.97 | |
|
DMO-951 | GREEN LED, RANGE: 200mV, POWER: +5VDC | $89.97 | |
|
DMO-952 | GREEN LED, RANGE: 2V, POWER: +5V | $89.97 | |
|
DMO-953 | GREEN LED, RANGE: 20V, POWER: +5VDC | $89.97 | |
|
J4C13 | 13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 | $4.95 | |
|
PW2-5 | DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output | $42.90 |
