LPI-3-XEC Epic Series

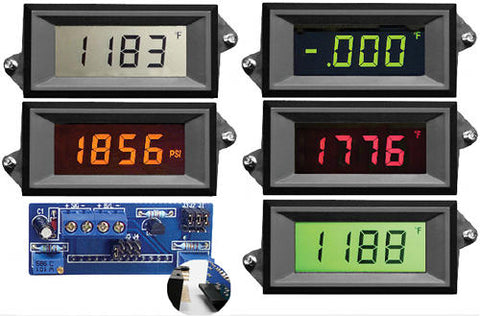

LPI-3-XEC Epic Series 3 1/2 digit loop powered LCD panel meter







  • Low-cost, high-performance replacement for many OEM DPMs
  • Optional Red, Green, Amber or Pos Green backlit LCD
  • Snap-in bezel mount eliminates mounting hardware
  • Resistant to RF and EMI
  • 3 1/2 digits with high-contrast LCD
  • 4- 20 mA  loop-powered input
  • User-selectable, displayed engineering units
  • Gasket and clamp provided for NEMA applications





Display:  Digits: 3 ½ digits (±1999 counts)
  Type:  0.45" (11.4 mm) 7 segment high contrast LCD
Backlighting:   Optional Red Negative
(red numbers/black background)
Optional Green Negative
(green numbers/black background)
Optional Amber Negative
(amber numbers/black background)
Optional Green Positive
(black numbers/green background)
  Polarity:  automatic, “-” displayed
  Annunciators:  °F, °C, PSI, %, user selectable
  Decimal Points:  3 position, user selectable
  Overrange:  three lower order digits blank for inputs >1999 & <-1999
Inputs:  Ranges:  4-20 mA DC
  Configuration:  bipolar differential
  Impedance:  390Ω
Performance:  Accuracy: ±(0.1% of fs + 2 count)
  Conversion Rate:  3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Common Mode Range: ±1 VDC max
  Common Mode Rej.: >86 dB
Adjustments: span (gain) and zero (offset)
  Warmup: 10 minutes typical
  Temperature Coeff.: ± 100 ppm per °C typical
Environment:  Operating Range:  0 to 50 °C
  Storage Range:  -10 to 70 °C
Power Supply:    powered by the milliamp control loop
Optional Backlight: 24 VDC at 35 mA typical
Mounting:    snap-in bezel mount or clamp and gasket
Connection:   2 screw terminal (4 with backlight)
