LPI-3EW Epic Series

Click here for Ordering Information

LPI-3EW Epic Series 3 1/2 digit loop powered LCD panel meter





  • Low-cost, high-performance replacement for many OEM DPMs

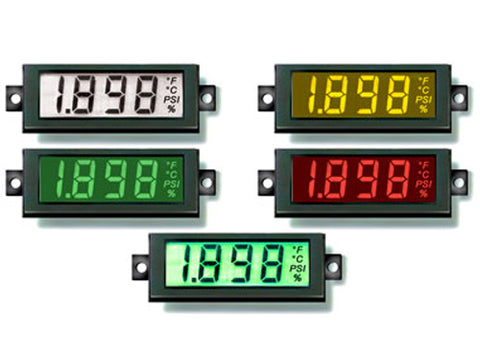

  • Optional Red, Green or Amber backlighting
  • Window mount
  • Resistant to RF and EMI
  • 3 1/2 digits with high-contrast LCD
  • 4- 20 mA  loop-powered input
  • User-selectable, displayed engineering units





Display:  Digits: 3 ½ digits (±1999 counts)
  Type:  0.45" (11.4 mm) 7 segment LCD
Backlighting:   Optional Red Negative
(red numbers/black background)
Optional Green Negative
(green numbers/black background) Optional Amber Negative
(amber numbers/background)
Optional Green Positive
(black numbers/green background)
  Polarity:  automatic, “-” displayed
  Annunciators:  °F, °C, PSI, %, user selectable or V, A, KW, PF
  Decimal Points:  3 position, user selectable
  Overrange:  three lower order digits blank for inputs >1999 & < -1999
Inputs:  Ranges:  4-20mA DC
  Configuration:  bipolar differential
  Impedance:  300Ω nominal
Performance:  Accuracy: ± (0.1% fs + 2 count)
  Conversion Rate: 3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Common Mode Range:  ±1V DC max
  Common Mode Rej.: >86 dB
  Adjustments:  span (gain) and zero (offset)
  Warmup:  10 minutes typical
  Temperature Coeff.: ± 100 ppm per °C typical
Environment:  Operating Range:  0 to 50 °C
  Storage Range:  -10 to 70 °C
Power Supply:    powered by milliamp control loop
  Optional Backlight: 24V DC at 35 mA typical
Mounting:    window mount
Connection:   2 screw terminal (4 with backlight)

*Negative backlighting is lighted numerals
Positive backlighting is lighted background
LPI-3EW Epic Series Ordering Information
Show Cross-Reference Table
Image Model Description Price
CVC CVC Compact Current & Voltage Calibrator $186.66 Order Here

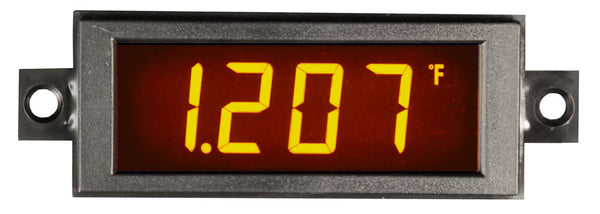

LPI-3EANW LPI-3EANW NEGATIVE AMBER LCD, RANGE: 4-20mA, MOUNTING: WINDOW $101.11 Order Here
LPI-3EGNW LPI-3EGNW NEGATIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: WINDOW $101.11 Order Here
LPI-3EGPW LPI-3EGPW POSITIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: WINDOW $101.11 Order Here
LPI-3ERNW LPI-3ERNW NEGATIVE RED LCD, RANGE: 4-20mA, MOUNTING: WINDOW $101.11 Order Here
LPI-3EW LPI-3EW NO BACKLIGHT LCD, RANGE: 4-20mA, MOUNTING: WINDOW $93.26 Order Here
LPI-3PEANW LPI-3PEANW NEGATIVE AMBER LCD, RANGE: 4-20mA, MOUNTING: WINDOW, WITH POWER ENGINEERING UNITS $101.11 Order Here
LPI-3PEGNW LPI-3PEGNW NEGATIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: WINDOW, WITH POWER ENGINEERING UNITS $101.11 Order Here
LPI-3PEGPW LPI-3PEGPW POSITIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: WINDOW, WITH POWER ENGINEERING UNITS $101.11 Order Here

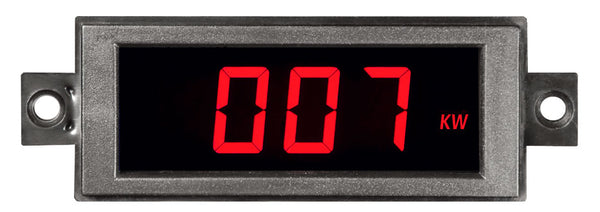

LPI-3PERNW LPI-3PERNW NEGATIVE RED LCD, RANGE: 4-20mA, MOUNTING: WINDOW, WITH POWER ENGINEERING UNITS $101.11 Order Here
LPI-3PEW LPI-3PEW NO BACKLIGHT LCD, RANGE: 4-20mA, MOUNTING: WINDOW, WITH POWER ENGINEERING UNITS $93.26 Order Here
PW2-24 PW2-24 DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output $43.78 Order Here
