LPI-4E Epic Series

Click here for Ordering Information

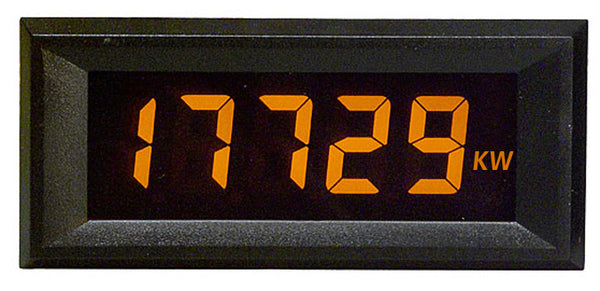

LPI-4E Epic Series - 4 1/2 digit loop powered LCD panel meter


  •  Low-cost, high-performance replacement for many OEM DPMs
  • Optional Red, Green or Amber backlighting
  • Snap-in bezel mount eliminates mounting hardware
  • Resistant to RF and EMI
  • 4 1/2 digits with high-contrast LCD
  • 4- 20 mA  loop-powered input
  • User-selectable, displayed engineering units







Display:  Digits: 4 ½ digits (±19999 counts)
  Type:  0.45" (11.4 mm) 7 segment LCD
Backlighting:   Optional Red Negative
(red numbers/black background)
Optional Green Negative
(green numbers/black background) Optional Amber Negative
(amber numbers/background)
Optional Green Positive
(black numbers/green background)
  Polarity:  automatic, “-” displayed
  Annunciators:  °F, °C, PSI, % or V, A, KW, PF
  Decimal Points:  4 position, user selectable
  Overrange:  four lower order digits blank for inputs >19999 & <-19999
Inputs:  Ranges:  4-20mA DC
  Configuration:  bipolar differential
  Impedance:  300Ω nominal @ 20 mA
Performance:  Accuracy: ± (0.1% fs + 2 count)
  Conversion Rate: 3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Adjustments:  span (gain) and zero (offset)
  Warmup:  10 minutes typical
  Temperature Coeff.: ± 100 ppm per °C typical
Environment:  Operating Range:  0 to 50 °C
  Storage Range:  -10 to 70 °C
Power Supply:    powered by milliamp control loop
  Optional Backlight: 24V DC at 35 mA typical
Mounting:    snap-in bezel mount
Connection:   2 screw terminal (4 with backlight)

LPI-4E Epic Series Ordering Information
Show Cross-Reference Table
Image Model Description Price
CVC CVC Compact Current & Voltage Calibrator $186.66 Order Here
LPI-4E LPI-4E NO BACKLIGHT LCD, RANGE: 4-20mA, MOUNTING: SNAP IN $116.74 Order Here
LPI-4EAN LPI-4EAN NEGATIVE AMBER LCD, RANGE: 4-20mA, MOUNTING: SNAP IN $126.95 Order Here
LPI-4EGN LPI-4EGN NEGATIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: SNAP IN $126.95 Order Here
LPI-4EGP LPI-4EGP POSITIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: SNAP IN $126.95 Order Here
LPI-4ERN LPI-4ERN NEGATIVE RED LCD, RANGE: 4-20mA, MOUNTING: SNAP IN $126.95 Order Here
LPI-4PE LPI-4PE NO BACKLIGHT LCD, RANGE: 4-20mA, MOUNTING: SNAP IN, WITH POWER ENGINEERING UNITS $116.74 Order Here
LPI-4PEAN LPI-4PEAN NEGATIVE AMBER LCD, RANGE: 4-20mA, MOUNTING: SNAP IN, WITH POWER ENGINEERING UNITS $126.95 Order Here
LPI-4PEGN LPI-4PEGN NEGATIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: SNAP IN, WITH POWER ENGINEERING UNITS $126.95 Order Here
LPI-4PEGP LPI-4PEGP POSITIVE GREEN LCD, RANGE: 4-20mA, MOUNTING: SNAP IN, WITH POWER ENGINEERING UNITS $126.95 Order Here
LPI-4PERN LPI-4PERN NEGATIVE RED LCD, RANGE: 4-20mA, MOUNTING: SNAP IN, WITH POWER ENGINEERING UNITS $126.95 Order Here
PW2-24 PW2-24 DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output $43.78 Order Here
