LPI/VPI-800 Series

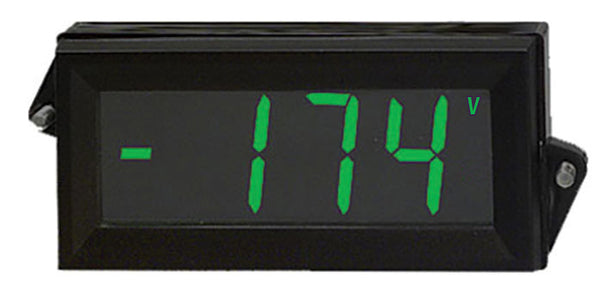

LPI/VPI-800 Series 3 1/2 digit LCD panel meter
  • Large 1”, 3 1/2 digit display for easy viewing
  • Available as loop-powered (LPI) or voltage-controlled (VPI)
  • User-selectable decimal points
  • User-selectable engineering units
  • Optional Red, Green, Orange or Blue backlit LCD
  • Wide ZERO (Offset) & SPAN (Gain) adjustment
  • Standard 1/8 DIN package
  • Snap-in panel mounting
  • Gasket and clamp provided for NEMA 4, NEMA 12, & IP66 applications





Display:  Digits: 3 ½ digits (±1999 counts)
  Type:  1” ( 24.9 mm) high contrast LCD
  Polarity:  automatic, “-” displayed
  Annunciators: °F, °C, PSI, %, user selectable or V, A, KW, PF
  Decimal Points: 3 position, user selectable
  Overrange: three lower order digits blank for inputs >1999 & <-1999
Inputs:  Voltage Ranges:  200mV, 5V, 10V (VPI)
  Current Range:  4 to 20mA (LPI)
  Configuration: single ended (VPI)
  Impedance:  390KΩ (VPI)
Performance: Accuracy: ±(0.05% of full scale + 1 count)
  Conversion Rate:  3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Warmup:  10 minutes typical
  Temperature Coeff.: ±100 ppm per °C typical
Adjustments:   25 turn potentiometers
  Offset Range:  -1999 to +1999
  Gain Range: 1 to 1999 (custom ranges available)
Environment: Operating Range:  -10 to 50° C
  Storage Range: -10 to 75° C
Power Supply: Loop Powered: 300Ω nominal at 20mA (LPI)
  Voltage Controlled: 10mA at 12V (9 to 16V) or 24V (16 to 32V) (VPI)
  Backlighting:  35mA typical @ 24vdc
Mounting:    snap-in panel mount or clamp and gasket (included)
Connection:   screw terminals
