PW2 Series

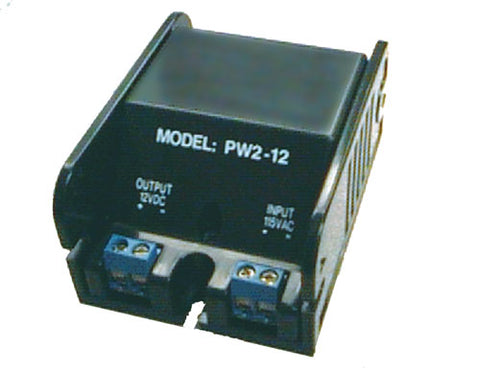

PW-2 Power Supply





The Model PW 2 converts AC line voltage to regulated DC output. This compact power supply may be used to power various DC operated peripherals and input / output modules on PLC’s, or transmitters in process control.

  • Regulated-power outputs of 5 VDC, 12 VDC and 24 VDC
  • center120 V/60Hz input
  • centerScrew-terminal connections
  • centerEasily mounted in any plane
  • centerOutput DC voltages are isolated from AC line





Voltage:  Input : 120 VAC ± 5%/60Hz (external fuse recommended)
  Output: 5V ± 0.2VDC@300mA
12V ± 0.5VDC@200mA
24V ± 1VDC@100mA
Environment:  Operating Temperature:  0 to 55 °C
  Max. Humidity: 95% RH, noncondensing
Weight:    0.38 lb.
Mounting:    side or base
Isolation Breakdown Voltage:    3KVAC

Output Ripple Voltage:  No Load: Max Load:
PW2-5:  2mVp-p 1.1mVp-p
PW2-12:  3mVp-p 1mVp-p
PW2-24:  4mVp-p 1.3mVp-p
