VPI-24AC Series

VPI-24AC Series 3 1/2 digit voltage powered LCD panel meter



  • Large 1”, 3 1/2 digit display for easy viewing
  • User-selectable decimal points
  • User-selectable engineering units

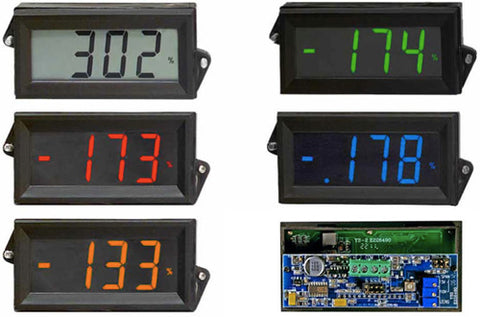

  • Optional Amber, Green, Red or Blue backlit LCD
  • Wide ZERO (Offset) & SPAN (Gain) adjustment
  • Standard 1/8 DIN package
  • Snap-in panel mounting







Display:  Digits: 3 ½ digits (±1999 counts)
  Type:  1" ( 24.9 mm) high contrast LCD
  Polarity:  automatic, "-" displayed
  Annunciators: °F, °C, PSI, %, user selectable or V, A, KW, PF
  Decimal Points: 3 position, user selectable
  Overrange: three lower order digits blank for inputs >1999 & <-1999
Inputs:  Voltage Ranges:  5 V, 10 V adjustable, 200mV fixed
  Configuration: single ended
Performance: Accuracy: ±(0.05% of full scale + 1 count)
  Conversion Rate:  3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Warmup:  10 minutes typical
  Temperature Coeff.: ±100 ppm per °C typical
Adjustments:   25 turn potentiometers
  Offset Range:  -1999 to +1999
  Gain Range: 1 to 1999 (custom ranges available)
Environment: Operating Range:  -10 to 50° C
  Storage Range: -10 to 75° C
Power Supply: Voltage Controlled: 24 VAC/DC
Mounting:    snap-in
Connection:   screw terminals
