VPI-4E Epic Series

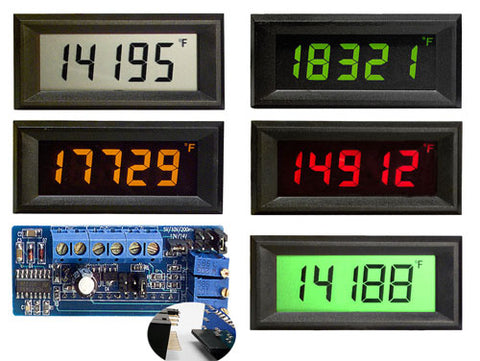

VPI-4E Epic Series - 4 1/2 digit voltage powered LCD panel meter





  • Low-cost, high-performance replacement for many OEM DPMs
  • Optional Red, Green, Amber or Positive Green backlighting
  • Snap-in bezel mount eliminates mounting hardware
  • Optional window mount
  • Resistant to RF and EMI
  • 4 1/2 digits with high-contrast LCD
  • 12V or 24V DC voltage-powered
  • User-selectable, displayed engineering units







Display:  Digits: 4 ½ digits (±19999 counts)
  Type:  0.45" (11.4 mm) 7 segment LCD
Backlighting:   Optional Red Negative
(red numbers/black background)
Optional Green Negative
(green numbers/black background) Optional Amber Negative
(amber numbers/black background)
Optional Green Positive
(black numbers/green background)
  Polarity:  automatic, “-” displayed
  Annunciators:  °F, °C, PSI, %, user selectable or V, A, KW, PF
  Decimal Points:  4 position, user selectable
  Overrange:  four lower order digits blank for inputs >19999 & <-19999
Inputs:  Ranges:  0-10V DC, 0-5V DC or 0-200mV DC
  Configuration:  single ended
  Impedance:  390 KΩ min.
Performance:  Accuracy: ± (0.1% fs + 2 count)
  Conversion Rate:  3 per second
  Normal Mode Rejection: >30 dB @ 60 Hz
  Adjustments:  span (gain) (2) (10V and 5V) and zero (offset)
  Warmup:  10 minutes typical
  Temperature Coeff.: ± 100 ppm per °C typical
  Offset Range: -19999 to +19999
  Gain Range: 1-20000 counts above adjusted zero
Environment:  Operating Range:  0 to 50° C
  Storage Range:  -10 to 60° C
Power Supply:    12 VDC or 24 VDC regulated (selectable)
  Optional Backlight: 24 VDC at 35 mA
Mounting:    snap-in bezel mount
Connection:   4 screw terminal (6 with backlight)
