5B/W/S Series

Low-cost, high-performance, replacement for many OEM DPMs
Optional Red or Green backlighting
Mounting choices:

Window mount for custom OEM
Surface mount with minimum space behind the panel
Bezel mount using retaining clips
Snap-in bezel mount eliminates mounting hardware

Low power: choice of 180µA (9V, ±5V) or 2.5mA (+5V)
Space-saving design: only 1" (25 mm) deep
Occupies less than 2.5 X 1.1 inches of front panel space
3 1/2 digits with high-contrast LCD
Optional loop-powered 4 to 20mA process inputs available: (See LPI-J1)

Display:	Digits:	3 ½ digits (±1999 counts)
	Type:	0.5" (12mm) high-contrast reflective LCD

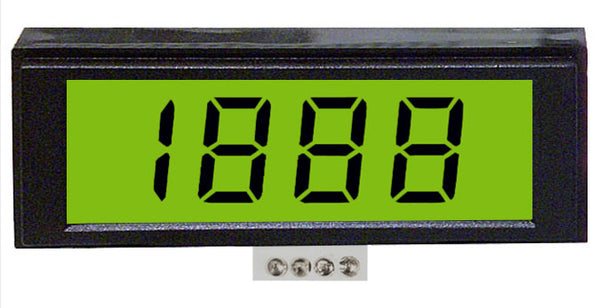

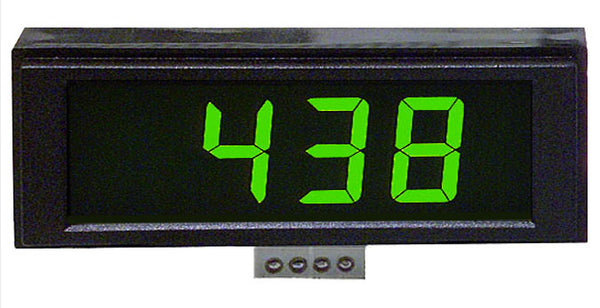

Backlighting:		Optional Red Negative (red numbers/black background) Optional Green Negative (green numbers/black background) Optional Green Positive (black numbers/green background)
	Polarity:	automatic, “-” displayed
	Decimal Points:	3 position, user selectable
	Overrange:	three lower order digits blank for inputs >1999 & <-1999
Inputs:	Ranges:	±200.0mV, ±2.000V, ±20.00V DC
	Configuration:	bipolar & differential
	Protection:	±350 VDC, (±100 VDC on 200 mV range)
	Impedance:	>10 MΩ, (>1 MΩ on 20V range)
Performance:	Accuracy:	±(0.1% +1 count) typical ±(0.1% + 2 counts) maximum
	Conversion Rate:	2.5 per second
	Normal Mode Rejection:	>30 dB @ 60 Hz
	Common Mode Range:	±1 VDC
	Common Mode Rejection:	>86 dB
	Zero Adjustment:	automatic
	Warmup:	10 minutes typical
	Temperature Coeff.:	± 100 ppm per °C typical
Environment:	Operating Range:	0 to 50 °C
	Storage Range:	-10 to 70 °C
Power Supply:	5V powered:	+5V DC (±5%) at 2.5 mA
	9V(±5V) powered:	+7.2 to +12 V at 180 µA
	Optional Backlight:	+5V DC at 100 mA typical

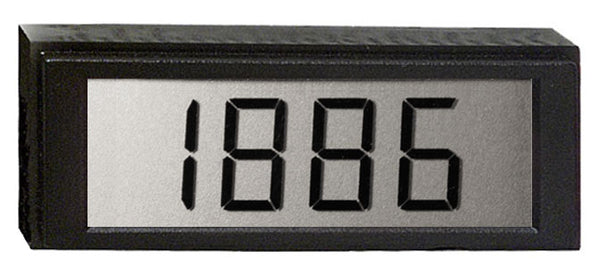

Mounting:	5W:	surface or window mount

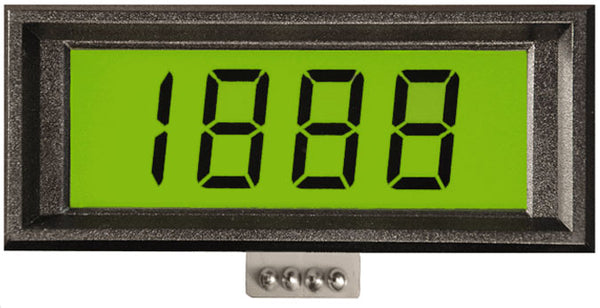

	5B:	bezel mount with retaining clips

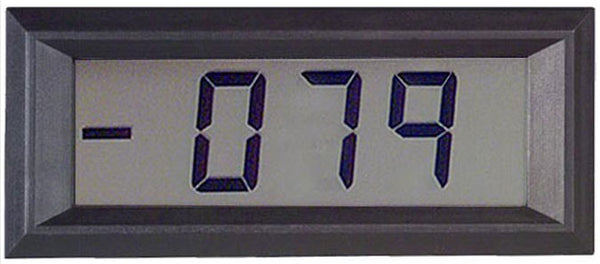

	5S:	snap-in bezel mount
Connection:	5W, 5B, 5S:	13 pins, 0.025" square on 0.1" centers - pin 3 missing

5B/W/S Series Ordering Information

Show Cross-Reference Table

Cross Referece Table
KNS Part	Brighton	Jewell	Modutec	C-Ton
5B0040	SI70004	5900200040	BL130301
5B0050	SI70009	5900200090	BL130101
5B0090	SI70009	5900200090	BL130101
5B0140	SI70014	5900200140	BL130302
5B0150	SI70019	5900200190	BL130102
5B0190	SI70019	5900200190	BL130102
5B0240	SI70024	5900200240	BL130303
5B0250	SI70029	5900200290	BL130103
5B0290	SI70029	5900200290	BL130103
5B2041	SI70204A	5900202041	BL330301-01
5B2141	SI70214A	5900202141	BL330302-01
5B4041	SI70404A	5900204041	BL430301-01
5B4141	SI70414A	5900204141	BL430302-01
5B6041	SI70604A	5900206041	BL530301-01
5B6141	SI70614A	5900206141	BL530302-01
5S0040N	SI90004	5900600040		DK500
5S0050N	SI90009	5900600050		DK503
5S0090N	SI90009	5900600050		DK503
5S0140N	SI90014	5900600140		DK501
5S0150N	SI90019	5900600150		DK504
5S0190N	SI90019	5900600150		DK504
5S0240N	SI90024	5900600240		DK502
5S0250N	SI90029	5900600250		DK505
5W0040	SI60004	5900100040	BL100301	DK301
5W0050	SI60009	5900100090	BL100101	DK101
5W0090	SI60009	5900100090	BL100101	DK101
5W0140	SI60014	5900100140	BL100302	DK302
5W0150	SI60019	5900100190	BL100102	DK102
5W0190	SI60019	5900100190	BL100102	DK102
5W0240	SI60024	5900100240	BL100303	DK303
5W0250
5W0290	SI60029	5900100290	BL100103	DK103
5W2041	SI60204A	5900102041	BL300301-01	DK331
5W2141	SI60214A	5900102141	BL300302-01	DK332
5W4041	SI60404A	5900104041	BL400301-01	DK431
5W4141	SI60414A	5900104141	BL400302-01	DK432
5W6041	SI60604A	5900106041	BL500301-01	DK531
5W6141	SI60614A	5900106141	BL500302-01	DK532
CVC				CVC
J1C13				J1C13
J1C4
PW2-12				PW2-12
PW2-5				PW2-5

Image	Model	Description	Price
	5B0040	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +5VDC	$56.57	Order Here
	5B0050	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +/-5VDC	$56.57	Order Here
	5B0090	NO BACKLIGHT LCD, RANGE: 200mV, POWER: 9V	$56.57	Order Here
	5B0140	NO BACKLIGHT LCD, RANGE: 2V, POWER: +5VDC	$56.57	Order Here
	5B0150	NO BACKLIGHT LCD, RANGE: 2V, POWER: +/-5VDC	$56.57	Order Here
	5B0190	NO BACKLIGHT LCD, RANGE: 2V, POWER: 9V	$56.57	Order Here
	5B0240	NO BACKLIGHT LCD, RANGE: 20V, POWER: +5VDC	$56.57	Order Here
	5B0250	NO BACKLIGHT LCD, RANGE: 20V, POWER: +/-5VDC	$56.57	Order Here
	5B0290	NO BACKLIGHT LCD, RANGE: 20V, POWER: 9V	$56.57	Order Here
	5B2041	POS. GREEN LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5B2141	POS. GREEN LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	5B4041	NEG. GREEN LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5B4141	NEG. GREEN LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	5B6041	NEG. RED LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5B6141	NEG. RED LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	5S0040N	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +5VDC	$56.57	Order Here
	5S0050N	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +/-5VDC	$56.57	Order Here
	5S0090N	NO BACKLIGHT LCD, RANGE: 200mV, POWER: 9V	$56.57	Order Here
	5S0140N	NO BACKLIGHT LCD, RANGE: 2V, POWER: +5VDC	$56.57	Order Here
	5S0150N	NO BACKLIGHT LCD, RANGE: 2V, POWER: +/-5VDC	$56.57	Order Here
	5S0190N	NO BACKLIGHT LCD, RANGE: 2V, POWER: 9V	$56.57	Order Here
	5S0240N	NO BACKLIGHT LCD, RANGE: 20V, POWER: +5VDC	$56.57	Order Here
	5S0250N	NO BACKLIGHT LCD, RANGE: 20V, POWER: +/-5VDC	$56.57	Order Here
	5W0040	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +5VDC	$56.57	Order Here
	5W0050	NO BACKLIGHT LCD, RANGE: 200mV, POWER: +/-5VDC	$56.57	Order Here
	5W0090	NO BACKLIGHT LCD, RANGE: 200mV, POWER: 9V	$56.57	Order Here
	5W0140	NO BACKLIGHT LCD, RANGE: 2V, POWER: +5VDC	$56.57	Order Here
	5W0150	NO BACKLIGHT LCD, RANGE: 2V, POWER: +/-5VDC	$56.57	Order Here
	5W0190	NO BACKLIGHT LCD, RANGE: 2V, POWER: 9V	$56.57	Order Here
	5W0240	NO BACKLIGHT LCD, RANGE: 20V, POWER: +5VDC	$56.57	Order Here
	5W0250	NO BACKLIGHT LCD, RANGE: 20V, POWER: +/-5VDC	$56.57	Order Here
	5W0290	NO BACKLIGHT LCD, RANGE: 20V, POWER: 9V	$56.57	Order Here
	5W2041	POS. GREEN LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5W2141	POS. GREEN LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	5W4041	NEG. GREEN LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5W4141	NEG. GREEN LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	5W6041	NEG. RED LCD, RANGE: 200mV, POWER: +5VDC	$77.26	Order Here
	5W6141	NEG. RED LCD, RANGE: 2V, POWER: +5VDC	$77.26	Order Here
	CVC	Compact Current & Voltage Calibrator	$170.78	Order Here
	J1C13	13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #4	$4.95	Order Here
	J1C4	4 Pin Connector / Wire Assembly	$2.20	Order Here
	PW2-12	DC Power Supply, 120 AC Input, 12 VDC @ 200mA Output	$42.90	Order Here
	PW2-5	DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output	$42.90	Order Here
