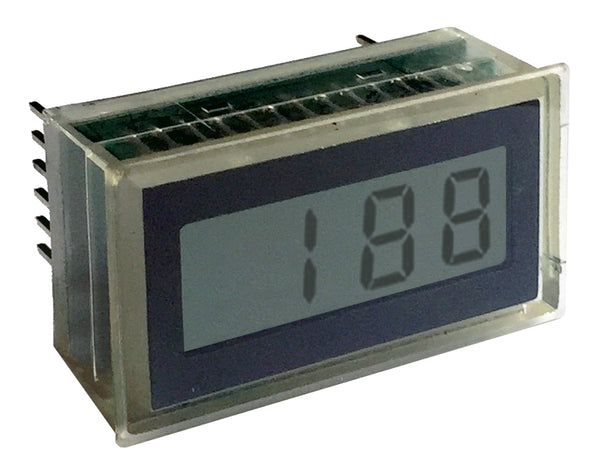

DLA-200LCD SERIES
3½ Digit LCD
| Display: | Numeral Size: | .37” (9.4 mm) |
| Overrange: | three lower order digits blank for inputs >1999 & < -1999 | |
| Polarity Indication: | automatic (-) for negative | |
| Supply Voltage: | +5 VDC @2mA (10mA with backlight option) |
|
| Inputs | Input Ranges: | ±200 mVdc, ± 2Vdc, ±20Vdc, ±200Vdc |
| Input Impedance: | 1000 MΩ (200 mV) 1 MΩ (other ranges) |
|
| Common Mode Range | ± 1 Vdc | |
| Performance | Accuracy: | ±1% F.S. ± 2 counts |
| Sampling Rate: | 3 per second | |
| Environment: | Operating Temperature: | 0 to 50 °C |
| Max Humidity: | 95% (non-condensing) | |
| Connection | 12 pin |
DLA-200LCD SERIES Ordering Information
Show Cross-Reference Table
| Image | Model | Description | Price | |
|
CVC | Compact Current & Voltage Calibrator | $170.78 | |
|
DLA-200LCD | INPUT: +/-200mV | $34.10 | |
|
DLA-201LCD | INPUT: +/-2V | $34.10 | |
|
DLA-202LCD | INPUT: +/-20V | $34.10 | |
|
DLA-203LCD | INPUT: +/-200V | $34.10 | |
|
PW2-5 | DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output | $42.90 |
